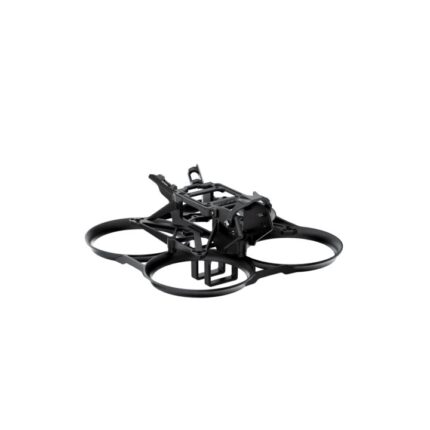

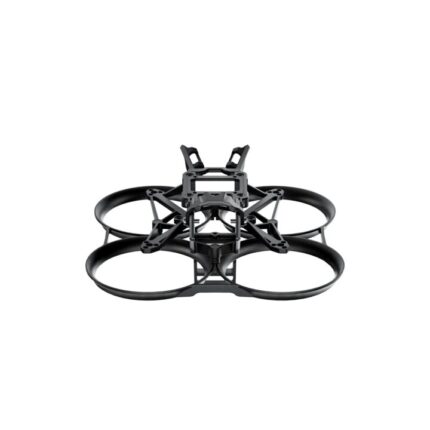

GEP-DS20 Frame
Features
-
- New design concept, lightweight fully injection molded body and multi-directional triangular support frame to ensure strength.
- Modular structure, easy to assemble.
- Five colors available: white, pink, gray, black, and blue.
- Adapted to O3 AIR Unit, Link, and analog image transmission.
- Compatible with 1003 and 1102 motors.
- The antenna fixed shield is carefully designed to be both practical and beautiful.
- Frame-type battery compartment makes it easier to disassemble and install batteries
Specifications
- Model:GEP-DS20 Frame
- Dimension:126mm*126mm*57mm
- Wheelbase:90mm
- FC Mount:25.5mm*25.5mm
- VTX Mount:20mm*20mm/25.5mm*25.5mm
- Motor Mount:3-M1.4-φ6.6mm
- Camera size:19mm/20mm
- Battery Slot Width:17.3mm*13.5mm
- Colors:white/pink/gray/black/blue
- Propellers:2 inch
- Weight:26g
Includes
1 x Integrated Protective Frame 1 x Main Frame 1 x VTX Mounting Plate 1 x Camera Protective Cap 1 x Screw Pack 2 x VTX Antenna 1 x 1.5mm L-type Screwdriver 1 x Torx Screwdriver

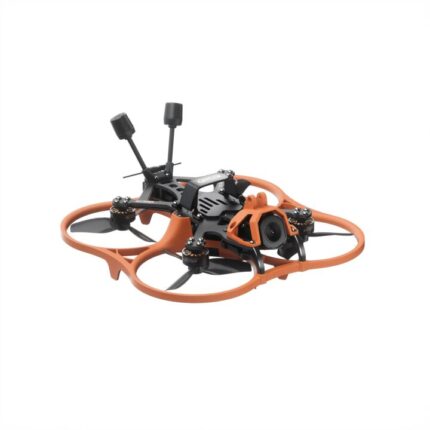

GEPRC Cinelog30 V3 O4 Pro Quadcopter
Key Features – GEPRC CineLog30 V3 O4 Pro (PNP)
Strong Frame
Carbon fiber build. 2.5 mm bottom plate. Tough and lightweight.
All-in-One Flight Stack
TAKER F722 AIO. 45A ESC. Fast chip. Stable gyro.
Clear HD Video
DJI O4 Air Unit Pro. Crisp image. Low latency. Great in low light.
Smooth Power
SPEEDX2 1404 3850KV motors. Fast throttle. Tight control.
4S Battery Ready
Use 660–720 mAh 4S LiPo. Flies up to 8 minutes.
Ultra-Lightweight
Only 187 g (PNP). Easy to carry. Great for tight spaces.
Cinematic Tuning
Soft-mounted O4 camera. Vibration dampers. Super smooth footage.

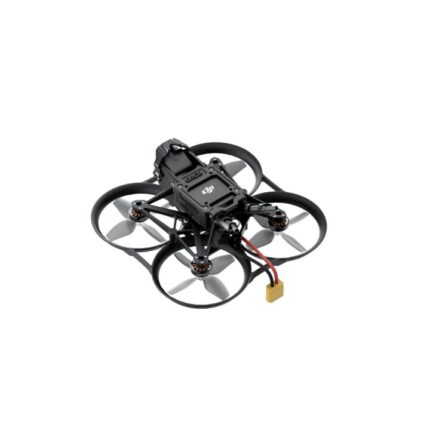

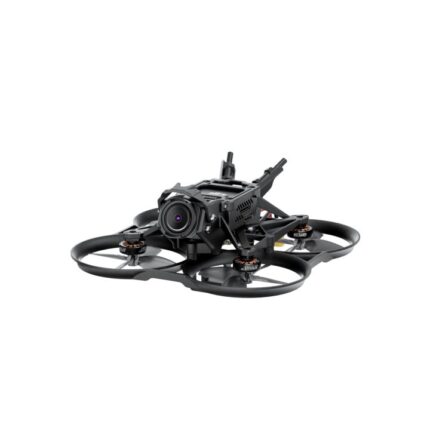

GEPRC DarkStar20 HD O3 Cinewhoop Quadcopter
Specifications
- DarkStar20 O3 PNP(Buit-in O3 Air Unit receiver)Weight: 85g ± 1g
- Model: DarkStar20 O3 Cinewhoop Quadcopter
- Flight time: 4′40″ (indoor low speed cruising)
- Receiver: PNP / ELRS2.4G / TBS Nano RX
- FC system: TAKER F411-12A-E 1-2S AIO
- Recommended battery: LiPo 2S 500mah
- OSD: Betaflight OSD w/AT7456E chip
- Motor: SPEEDX2 1102 10000KV
- Propeller: HQProp DT51mm x4
- Antenna: 5.8G UFL antenna
- Frame: GEP-DS20 Frame
- MCU: STM32F411CEU6
- ESC: Bluejay 8Bit 12A
- Camera: O3 Camera
- Wheelbase: 90mm
- VTX: O3 Air Unit
- Gyro: BMI270
Features
- Optimal Performance & Stability
- Lightweight & Durable Design
- Integrated ELRS Receiver
- 4K High-Definition Video
- Versatile for All Pilots
Includes
1 x DarkStar20 Wasp Cinewhoop Quadcopter 2 x HQProp DT51mm*4（2pairs） 1 x Plum screwdriver 1 x Set of screws 1 x Keychain

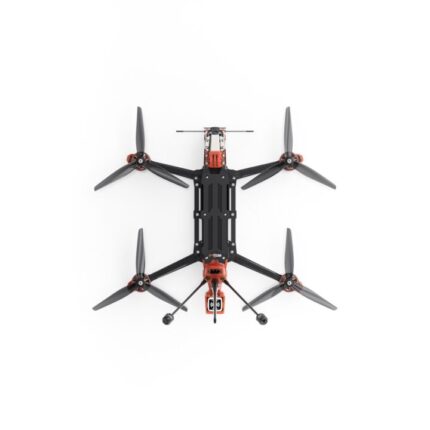

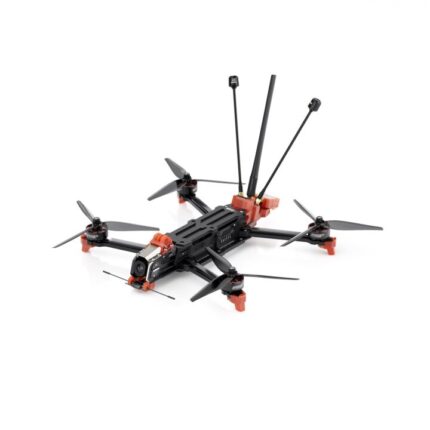

GEPRC MOZ7 V2 O4 Pro Long Range FPV Drone
Durable Carbon Fiber Frame
Machined 336 mm frame with 2.5 mm top & bottom plates and 6 mm arms. Rigid and crash-resistant.
High-Performance Flight Controller & ESC
TAKER H743 FC with dual gyros (MPU6000 + ICM42688-P) and a 50 A 4‑in‑1 BLHeli_32 ESC deliver smooth, precise control.
HD Video with DJI O4 Air Unit Pro
Built-in O4 Air Unit Pro supports 4K/120 fps recording and low-latency HD video transmission.
Powerful and Efficient Motors
Equipped with SPEEDX2 2809 1450 KV motors optimized for HQ 7.5″ props. Ideal for long-range cruising with strong throttle response.
Built-in GPS & TBS Nano RX Receiver
Comes standard with the GEP-M1025 GPS for fast rescue capability. Receiver variant uses TBS Nano RX for reliable long-range link.
6S Battery Support & Long Flight Time
Compatible with 6S LiPo (3300 mAh) or Li-ion (8000 mAh) packs. Expect around 25 minutes of flight autonomy.
Optimized Weight for Range & Stability
Approximately 750 g without battery—well-balanced for long-range flight.
Full Set of Included Accessories
Comes ready-to-fly: includes props, straps, tools, antennas, GPS parts, and more.

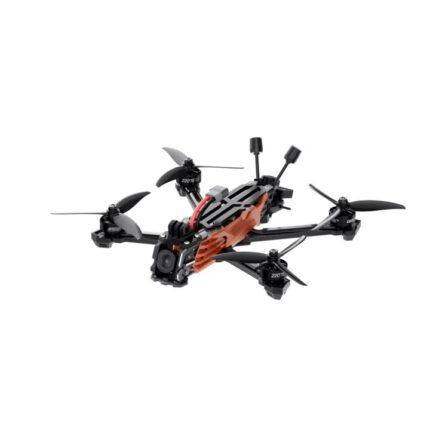

GEPRC Vapor-D5 HD O4 Pro FPV Drone
Key Features
Strong Carbon Frame:
5 mm arms. 2.5 mm bottom plate. Built to take crashes.
Smart Flight Control:
Uses the F722-HD V2 FC. Fast response. Stable handling.
HD Video Ready:
Includes DJI O4 Air Unit Pro. Sharp, low-latency feed.
Big Image Sensor:
The O4 Pro camera gives clear video. Great light sensitivity.
Powerful Motors:
Runs on GEPRC SPEEDX2 2207E motors. Smooth thrust. Great control.
6S Battery Support:
Works best with 1300–1800mAh 6S LiPos. Up to 19 mins of flight.
Lightweight Build:
Only 428 g (without battery). Fast and agile.
Tuned for Performance:
Factory-tuned. Ready to rip right out of the box.
